AT SDI Temp.Sensor

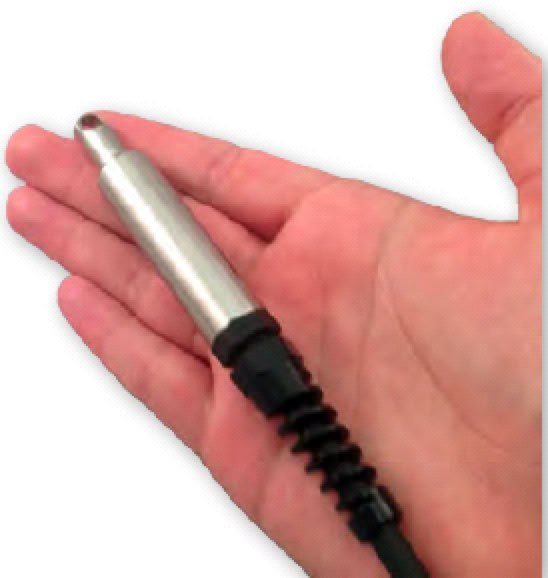

AT SDI-12 temperature sensor

The AT submersible SDI-12 temperature sensor is designed for a variety of applications. The unit functions effectively in soil, shallow streams, surface and ground water.

The AT sensor accurately measures temperatures in stilling wells, dams and aquaculture tanks where very long cable runs are often necessary (up to 300 ft.). Cable length does not affect accuracy performance.

Features

SDI-12 Operation (V1.3)

Tough UV resistant polyurethane cable with waterblock

Stainless steel body with eyelet for weight or pull strings

Flex fitting to protect cable

Built-in SDI-12 surge protection

Applications

Soil Temperature

Streams

Surface Water

Stilling Wells

Dams

Aquaculture Tanks

Specifications:

Measurement Interval: 1 Second to

Units: Celsius, Fahrenheit

Accuracy: 0.01 C

Operating Range: -40 to +60

Quiescent current:< 0.1 mA

Acitve current: < 5 mA

Input Voltage: 7 to 16 V

SDI-12 Revision: V1.3

Tough UV resistant polyurethane cable: 60, 100, 150, 200 or 300 ft

Diameter: 0.63 inch

Device is capable of fitting through a standard 1 inch conduit with 8 inch factory bend corner

NIST traceable calibration certificate

Ordering guide:

AT-60: AT submersible SDI-12 temperature sensor with 60 ft cable

AT-100: AT submersible SDI-12 temperature sensor with 100 ft cable

AT-150: AT submersible SDI-12 temperature sensor with 150 ft cable

AT-200: AT submersible SDI-12 temperature sensor with 200 ft cable

AT-300: AT submersible SDI-12 temperature sensor with 300 ft cable
