Energy supply:

• Power supply: 12...24 VDC (± 10 %)
• Power consumption: approx. 2...6 W in operation; max. 30 mW in standby

Installation:

• Path lengths:  1 mm, 2 mm, 5 mm, 10 mm
• Max. pressure: 43 PSI
• Protection type: IP68
• Inflow velocity: up to 10 m/s
• Operating temperature: +2...+40 °C
• Storage temperature: -10 °C...+70 °C

Control:

• Control connection: 4-pin M8 connector (A suitable M8 connection cable with open end is included in the scope of delivery.)
• Trigger input: 5...24 VDC (±10% )
• Power consumption of trigger input: 2...15 mA
• Operating period (max.): 3 seconds



Others:

• Dimensions L x Ø: 175 mm x 80 mm
• Weight: 0.52 kg
• Materials: NBR, POM, TPE (PP, EPDM), Titanium or V4A
• Warranty period: 1 year
• Maintenance effort: typically ≤ 0.5 h/month
• Maintenance interval: depending on application

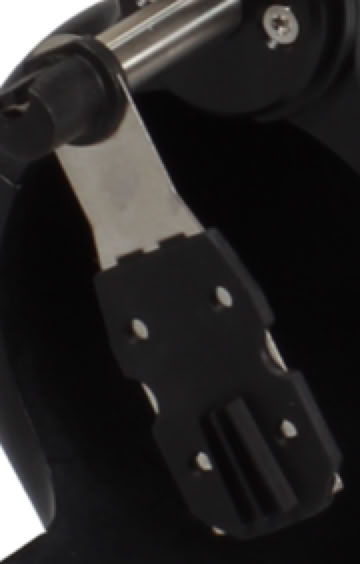

# 02A100118   V2 Wiper blades set incl. wiper axis for 1mm path length

# 02A100218  V2 Wiper blades set incl. wiper axis for 2mm path length

# 02A100518   V2 Wiper blades set incl. wiper axis for 5mm path length

# 02A100618  V2 Wiper blades set incl. wiper axis for 10mm path length
